Line 1: Line 1:
−
{{DISPLAYTITLE:Internet Usage}}
+
{{DISPLAYTITLE:Internet Usage Monitoring}}
−
= Recording Policy =
+
== Internet Usage Monitoring ==
−
* 设置需要记录的内容，如果应用对象对应了多个记录级别，则对应的记录级别一起生效。
+
The "Internet Usage Monitoring" module records internet activities, including:
−
== Record Content ==
+
* Web Surf
 +
* Web Post
 +
* Outgoing Emails
 +
* Incoming Emails
 +
* File Upload History
 +
* File Download History
 +
* FTP/Telnet Sessions
 +
* IP-MAC History
 +
* Connection Details
 +

 +
This module works both in "gateway mode" and "bridge mode". Enterprise license is required.
 +

 +
[[File:Wfrecorder_query1.png|800px]]
 +

 +
[[File:Wfrecorder_query2.png|800px]]
 +

 +
[[File:Wfrecorder_query3.png|800px]]
 +

 +
[[File:Wfrecorder_queryftp.png|800px]]
 +

 +
[[File:Wfrecorder_querysessions.png|800px]]
 +

 +
[[File:Wfrecorder_querysessions.png|800px]]
 +

 +
[[File:Wfrecorder_queryconnections.png|800px]]
 +

 +
== Recording Policy ==
 +

 +
For every client, multiple policies can be applied. For example:
 +
* A policy: record web surfing for a whole subnet.
 +
* B policy: enable "email recording" for a special IP in this subnet.
 +
For this ip, both "web surfing recording" and "email recording" will be enabled.
 +

 +
Detailed "recording policy" settings are described in below.
 +


=== Web Recording ===

=== Web Recording ===
−
<p>'''网页浏览记录'''：记录访问的web网页标题，该功能不能记录https网站的页面标题（只记录域名），如需记录https网页的页面标题，请启用“HTTPS监控”。</p>
+
* '''Web Surf''': record titles of visited web pages for http websites. For https websites, only domains will be recorded in default. To record https webpages, please check [[Sslinspect|"SSL Inspector"]].
−
<p>'''网页粘贴记录'''：记录通过网页发送的内容，比如论坛发帖、网页附件上传等。可以对记录内容的大小进行设置。该功能不能记录https网站的发送内容，如需记录https网页的发送内容，请启用“HTTPS监控”。</p>
+
* '''Web Post''': record web post content for http websites. To record https websites posts, please check [[Sslinspect|"SSL Inspector"]].
−
<p>'''HTTPS监控'''：该功能可以监控https网站的网页浏览和网页粘贴的内容。HTTPS监控基于中间人拦截的技术，会把https网站的原始证书替换掉，从而解密其内容。为了使客户机的浏览器不提示证书告警信息，您可以在“高级配置”中下载证书并导入客户机的“受信任的根证书颁发机构”。</p>
+
* '''Web Post Size Limit''': no recording of web post exceeds size limit.
−
<p>'''智能过滤Web记录'''：自动过滤掉非人工访问的网址。该功能由程序自动进行判断，可以有效过滤掉一些非人工访问的网站，不过不能100%过滤掉。</p>
+
* '''Smart Filter''': With this feature enabled, WFilter will not record visits by non-human. (Not 100% accurate)
−
<p>'''不记录的域名'''：任何与配置在列表中的域名有关的内容将不被记录。</p>
+
* '''Domains Exception''': no recording of domains in the exception list. Wildcards "*?" are supported.
−
[[文件:Wfrecorder_setweb.jpg]]
+

 +
[[File:Wfrecorder_setweb_en2.png|650px]]


=== Email Recording ===

=== Email Recording ===
−
<p>'''邮件发送记录'''：记录发送的邮件内容，支持SMTP、POP3、IMAP4和发送的网页邮件。如需记录SSL邮件，您需要启用“SSL邮件监控”功能。否则不记录通过SSL加密的客户端邮件内容。超过大小限制的邮件不会被记录。</p>

−
<p>'''邮件接收记录'''：记录接收的邮件内容，支持SMTP、POP3、IMAP4。如需记录SSL邮件，您需要启用“SSL邮件监控”功能。否则不记录通过SSL加密的客户端邮件内容。超过大小限制的邮件不会被记录。</p>

−
<p>'''SSL邮件监控'''：该功能用于监控SSL加密的客户端邮件，如需监控https的网页邮件，需要启用“HTTPS监控”功能。同“HTTPS监控”功能用于，“SSL邮件监控”会替换掉原始证书，从而导致某些邮件客户端产生告警信息。</p>

−
[[文件:Wfrecorder_sermail.jpg]]


−
== 高级设置 ==
+
[[File:Wfrecorder_sermail_en.jpg|650px]]
−
* 该页面可以对一些高级的选项进行设置。
+

−
[[文件:Wfrecorder_advanced.jpg]]
+
* Emails supported: SMTP, POP3, IMAP4 and outgoing web-based emails.
−
=== 证书设置 ===
+
* For emails exceed size limit, only subject/from/to will be recorded.
−
* 可以查看当前证书的信息，并且重新生成证书和下载证书。该证书会用于在“SSL监控”中替换网站的现有证书，您可以下载该证书并导入到客户机的“受信任的根证书颁发机构”，从而使客户机浏览器不再出现证书告警。
+
* To record ssl emails(SMTP/POP/IMAP over SSL), please check [[Sslinspect|"SSL Inspector"]].
−
<p>'''生成证书'''：填写相对应的信息后，会根据填写的信息生成一个证书，其中“国家”，“省份”，“城市”，“组织”和“通用名”是必填项，填写时只能输入英文字符。</p>
+

−
<p>'''下载证书'''：可以下载当前证书，导入到客户机的“受信任的根证书颁发机构”后，客户机浏览器不再出现证书告警。</p>
+
=== File Transfers ===
−
[[文件:Wfrecorder_setcrt.jpg]]
+

 +
[[File:Wfrecorder_settings_ftp.png|650px]]
 +

 +
* File transfers supported: FTP upload, FTP download, Web download, Web upload.
 +
* WFilter only records filenames/URLs of downloaded files. While full file content can be recorded for uploading files.
 +
* For uploading files exceed size limit, only filenames can be recorded.
 +
* To record files via https, you need to enable "HTTPS Inspector".
 +

 +
=== Others ===
 +

 +
[[File:Wfrecorder_settings_other.png|650px]]
 +

 +
Options to enable IM acounts and FTP/Telnet sessions.
 +
* Only QQ messenger IDs can be recorded.
 +
* When "FTP/Telnet Sessions" is enabled, sent FTP/Telnet commands can be recorded.
 +
* IP-MAC History: daily IP-MAC address history.
 +
* Connections: detail of TCP connections history.
 +

 +
== Advanced Settings ==
 +

 +
=== System ===
 +
* '''IPv6''': enable recording of IPv6 activities.
 +
* '''Database Commit''': the database commit frequency.
 +
* '''Record local visits to below Hosts''': local traffic to these hosts will be recorded.
 +
* '''Additional Webmail Domains''': Custom webmails to be recorded.
 +
* '''Protocol Ports''', customize protocols ports for HTTP, HTTPS, POP3, IMAP4 and SMTP.

−
=== 系统设置 ===
+
[[File:Wfrecorder_advanced_en2.png|650px]]
−
<p>'''开启调试模式'''：可以开启调试模式并查看日志文件进行调试。</p>
+
−
<p>'''监控缓存大小'''：用于监控和记录的缓存区域大小，需要根据被监控机器的台数和记录内容的多少去设置。</p>
+
−
<p>'''数据库提交'''：数据库提交频率。反复对数据库进行提交会占用大量系统资源，我们会根据修改的次数去进行提交，先将提交记录在临时文件中，满足配置的次数后再进行提交，可以减轻系统资源的消耗。</p>
+
−
[[文件:Wfrecorder_setsystem.jpg]]
+

Latest revision as of 17:15, 7 July 2026

Contents

[edit] 1 Internet Usage Monitoring

The "Internet Usage Monitoring" module records internet activities, including:

  • Web Surf
  • Web Post
  • Outgoing Emails
  • Incoming Emails
  • File Upload History
  • File Download History
  • FTP/Telnet Sessions
  • IP-MAC History
  • Connection Details

This module works both in "gateway mode" and "bridge mode". Enterprise license is required.

Wfrecorder query1.png

Wfrecorder query2.png

Wfrecorder query3.png

Wfrecorder queryftp.png

Wfrecorder querysessions.png

Wfrecorder querysessions.png

Wfrecorder queryconnections.png

[edit] 2 Recording Policy

For every client, multiple policies can be applied. For example:

  • A policy: record web surfing for a whole subnet.
  • B policy: enable "email recording" for a special IP in this subnet.

For this ip, both "web surfing recording" and "email recording" will be enabled.

Detailed "recording policy" settings are described in below.

[edit] 2.1 Web Recording

  • Web Surf: record titles of visited web pages for http websites. For https websites, only domains will be recorded in default. To record https webpages, please check "SSL Inspector".
  • Web Post: record web post content for http websites. To record https websites posts, please check "SSL Inspector".
  • Web Post Size Limit: no recording of web post exceeds size limit.
  • Smart Filter: With this feature enabled, WFilter will not record visits by non-human. (Not 100% accurate)
  • Domains Exception: no recording of domains in the exception list. Wildcards "*?" are supported.

Wfrecorder setweb en2.png

[edit] 2.2 Email Recording

Wfrecorder sermail en.jpg

  • Emails supported: SMTP, POP3, IMAP4 and outgoing web-based emails.
  • For emails exceed size limit, only subject/from/to will be recorded.
  • To record ssl emails(SMTP/POP/IMAP over SSL), please check "SSL Inspector".

[edit] 2.3 File Transfers

Wfrecorder settings ftp.png

  • File transfers supported: FTP upload, FTP download, Web download, Web upload.
  • WFilter only records filenames/URLs of downloaded files. While full file content can be recorded for uploading files.
  • For uploading files exceed size limit, only filenames can be recorded.
  • To record files via https, you need to enable "HTTPS Inspector".

[edit] 2.4 Others

Wfrecorder settings other.png

Options to enable IM acounts and FTP/Telnet sessions.

  • Only QQ messenger IDs can be recorded.
  • When "FTP/Telnet Sessions" is enabled, sent FTP/Telnet commands can be recorded.
  • IP-MAC History: daily IP-MAC address history.
  • Connections: detail of TCP connections history.

[edit] 3 Advanced Settings

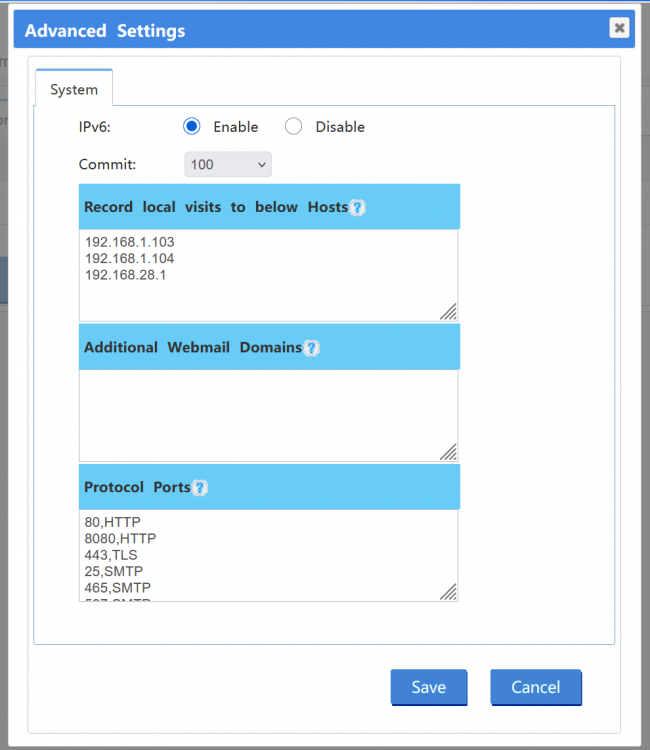

[edit] 3.1 System

  • IPv6: enable recording of IPv6 activities.
  • Database Commit: the database commit frequency.
  • Record local visits to below Hosts: local traffic to these hosts will be recorded.
  • Additional Webmail Domains: Custom webmails to be recorded.
  • Protocol Ports, customize protocols ports for HTTP, HTTPS, POP3, IMAP4 and SMTP.

Wfrecorder advanced en2.png
